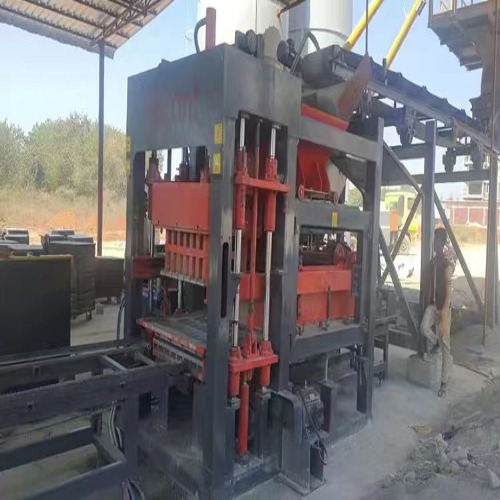

High Accuracy Automatic Zigzag Paver Block Making Machine QT8-15
The QT8-15 block making machine features high accuracy automatic zigzag paver production. It operates with a robust hydraulic system and vibration unit, ensuring dense, uniform blocks. The machine supports rapid mold change and produces various paver shapes efficiently. Its PLC control system manages batching, mixing, and stacking, reducing labor needs. The zigzag mechanism precisely aligns pavers for stable interlocking patterns.
Modelo :
Yixin Machinery QT8-15Dimensões da máquina :
9450*3600*2800Tamanho do palete :
940*860（MM）Tempo de ciclo :
15-20（S）Força de vibração :
95(KN)Pressão Vated :
21（mpa）Poder :
31.7(KW)High Accuracy Automatic Zigzag Paver Block Making Machine QT8-15
Reference video of QT8-15 zigzag paver block making machine
The QT8-15 automatic ripple shape block making machine uses high-frequency vibration and hydraulic pressure to transform concrete from the storage hopper into dense, durable blocks. Its main equipment includes a forced mixer, conveyor, hydraulic power unit, and PLC control panel. The vibration system ensures uniform compaction, while the pressing mechanism creates precise ripple shapes.
Production Data
| Block Type | Specification（mm） | Qty/Palllet | Qty/Hour | Qty/Hours |
| Hollow Block | 400*200*200 | 8 | 1440 | 11520-15360 |
| Solid Block | 240*115*53 | 42 | 10080 | 60480-80640 |
| Holland Block | 200*100*60 | 28 | 5040 | 40320 |
| Zigzag Block | 225*112.5*60 | 24 | 4320 | 34560 |
Product Detail
Block Type
The double couplet pump on the QT8-15 paver block machine integrates two hydraulic pumps in one unit for energy-saving synchronized operation. It efficiently drives both the main pressing cylinder and material feeding system, reducing cycle time to 15-18 seconds. This design ensures consistent compaction force across each zigzag paver, producing high-density blocks with sharp edges and smooth surfaces. The pump system minimizes oil temperature rise and extends component life.
Professional Shipping
The QT8-15 machine features a PLC central control system for high-precision automatic zigzag paver block production. It enables fully automated cycle control, including material feeding, vibration, molding, and block ejection. The user-friendly interface allows easy adjustment of pressure, vibration time, and production speed. Real-time monitoring and fault diagnosis ensure stable operation and reduce downtime. With precise synchronization of all production stages, the PLC system guarantees consistent block quality, high output efficiency, and minimal manual intervention, making it ideal for large-scale paving block manufacturing.
| FAQ |
|
1.How long does the product production cycle typically take? Automatic Ripple Shape Block Making Machine QT8-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.The production time for brick making machines is generally 25-30 working days, depending on the customer's production line requirements. |
|
2. How many days to change vibration box oil ,what kind of oil can be used inside? The hydraulic oil 68 degree can be used, the amount is from bottom 3cm. Strongly suggest 1 month change one time oil. |
|
3.What are the raw materials used in the production process of Yixin Machinery High Accuracy Automatic Zigzag Paver Block Making Machine QT8-15? The raw materials utilized in the production process of High Accuracy Automatic Zigzag Paver Block Making Machine QT8-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others. |
|
4.What is the estimated date of shipment for the High Accuracy Automatic Zigzag Paver Block Making Machine QT8-15 after mold confirmation? The estimated date of shipment for the High Accuracy Automatic Zigzag Paver Block Making Machine QT8-15 is 25-30 working days following the confirmation of the mold. This timeframe allows for the necessary preparations, assembly, and quality checks to ensure that the machine is ready for dispatch and meets the customer's specifications. |
|
5. Can the High Accuracy Automatic Zigzag Paver Block Making Machine QT8-15 be equipped with an additional device to produce various types of colored paving blocks?
Yes, the High Accuracy Automatic Zigzag Paver Block Making Machine QT8-15 can indeed be upgraded or equipped with a secondary materials device that allows for the production of a wide range of colored paving blocks. |
