Name: Factory Certification Concrete Block Forming Machine QT9-15
Availability: InStock

Factory Certification Concrete Block Forming Machine QT9-15

Reference video of QT9-15 concrete block making machine

The high-heat treatment technology applied to the QT9-15 concrete block forming machine significantly enhances mould durability and structural firmness. Through specialized thermal processing, the mould surface achieves superior hardness and resistance to wear, extending service life under high-frequency production. This advanced treatment also minimizes deformation during repeated pressing cycles, ensuring consistent block dimensions and shape accuracy.

Production Data

Block Type	Specification（mm）	Qty/Palllet	Qty/Hour	Qty/Hours
Hollow Block	400200200	9	1620	12500-17000
Solid Block	24011553	50	12000	85000-95000
Holland Block	20010060	33	5940	47520
Zigzag Block	225112.560	28	5040	40320

Product Detail

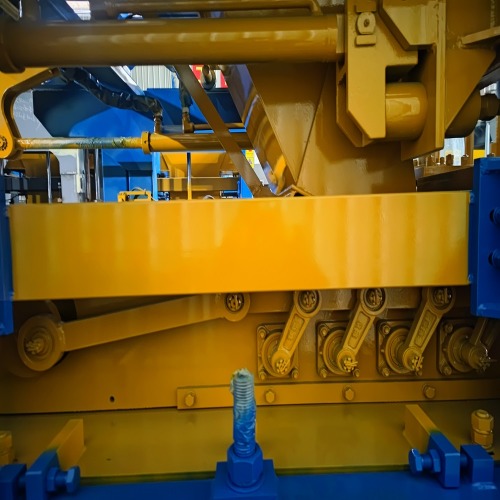

The flexible arm on the QT9-15 concrete block machine enhances production agility. It automatically adjusts mold positions for different block sizes, reducing changeover time. This feature supports quick adaptation to various product designs, including hollow, paving, and interlocking blocks. The arm’s movement is precise, minimizing material waste and vibration-related errors. It also simplifies maintenance by allowing easy access to internal components. Operators benefit from smoother workflow transitions and less downtime, directly improving overall plant efficiency and product consistency without manual intervention.

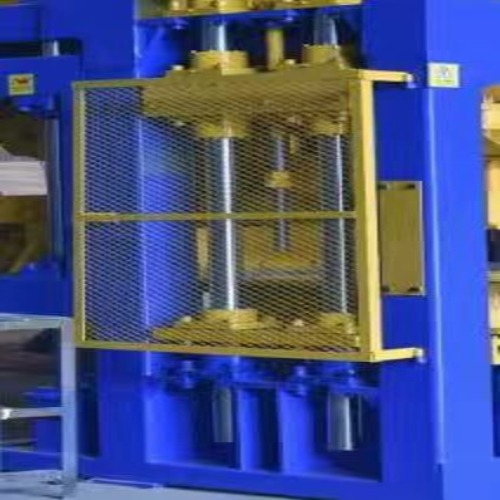

The QT9-15’s guiding system employs synchronized precision rails and high-strength slide bushings to ensure extreme mold alignment accuracy. It effectively prevents lateral movement during high-frequency vibration, maintaining consistent block dimensions and sharp edges. The wear-resistant guides reduce friction for smoother table travel, extend component life, and require minimal maintenance. This robust guide design directly improves product quality and production stability under full-load, high-speed operation.

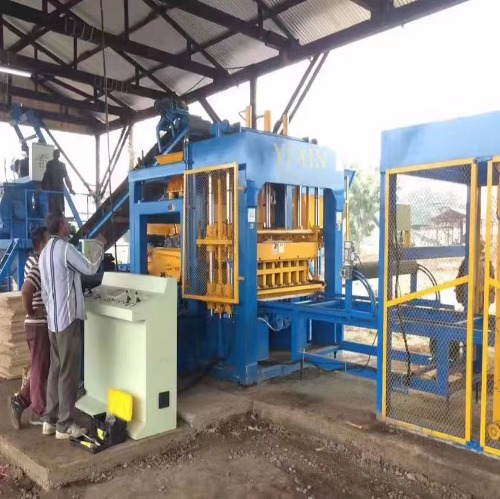

The block conveyor of the QT9-15 machine automatically transports finished blocks from the forming unit to the curing area. It features a heavy-duty chain and wear-resistant rubber belt to ensure smooth, vibration-free handling, reducing edge damage. Integrated sensors synchronize with the production cycle, activating only after each molding completes. The variable-speed motor allows adjustment for different block sizes or production rates. This conveyor minimizes manual intervention, cuts labor costs, and maintains consistent product quality in high-volume concrete block plants.

Block Display

The QT9-15 concrete block forming machine is a high-efficiency system for producing various block shapes from standard concrete. Material from the storage hopper is fed into the mold, then subjected to intense vibration and pressure to form dense, uniform blocks. This process allows the production of any desired block shape without needing specialized mixes.

Customers Access

The hydraulic unit of the QT9-15 concrete block forming machine delivers robust and reliable hydraulic power to enable all machine actions. It drives critical operations such as material feeding, pressing, mould vibration, and product ejection with high force and precision. Designed for continuous industrial use, the unit ensures smooth and consistent performance, fast cycle times, and low energy consumption.

FAQ

1.How long does the product production cycle typically take?

Factory Certification Concrete Block Forming Machine QT9-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.The production time for brick making machines is generally 25-30 working days, depending on the customer's production line requirements.

2. How many days to change vibration box oil ,what kind of oil can be used inside?

The hydraulic oil 68 degree can be used, the amount is from bottom 3cm. Strongly suggest 1 month change one time oil.

3.What are the raw materials used in the production process of Yixin Machinery Factory Certification Concrete Block Forming Machine QT9-15?

The raw materials utilized in the production process of Factory Certification Concrete Block Forming Machine QT9-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others.

4.What is the estimated date of shipment for the Factory Certification Concrete Block Forming Machine QT9-15 after mold confirmation?

The estimated date of shipment for the Factory Certification Concrete Block Forming Machine QT9-15 is 25-30 working days following the confirmation of the mold. This timeframe allows for the necessary preparations, assembly, and quality checks to ensure that the machine is ready for dispatch and meets the customer's specifications.

5. Can the Factory Certification Concrete Block Forming Machine QT9-15 be equipped with an additional device to produce various types of colored paving blocks?

Yes, the Factory Certification Concrete Block Forming Machine QT9-15 can indeed be upgraded or equipped with a secondary materials device that allows for the production of a wide range of colored paving blocks.
