Name: Automatic Hydraulic Paver Block Making Machine QT800
Availability: InStock

Automatic Hydraulic Paver Block Making Machine QT800

Reference video of QT800 paver block making mac

The hydraulic unit of the QT800 automatic hydraulic paver block making machine delivers reliable hydraulic power to drive all moving actions, including material feeding, pressing, mold vibration, and component lifting. It ensures synchronized operation and stable block compaction with high pressure output. The system is designed for energy efficiency, low noise, and easy maintenance. Equipped with overload protection and smooth flow control, it supports continuous production of dense, uniform concrete blocks, bricks, and pavers, enhancing overall machine performance and operational safety.

Production Data

Block Type	Specification（mm）	Qty/Palllet	Qty/Hour	Qty/Hours
Color Paver	50025060	8	1152	9216
Color Paver	20010060	45	6480	51840

Product Detail

The blocks stacker of the QT800 automatic hydraulic paver block making machine efficiently collects freshly formed blocks from the production line. It uses a hydraulic clamp to gently lift and transfer multiple blocks at once, then stacks them in stable, aligned layers on heavy-duty pallets. The system adjusts stacking patterns automatically to prevent shifting or damage during curing. With programmable controls, operators can set different stack heights and speeds.
The block conveyor of the QT800 automatic hydraulic paver block making machine smoothly transfers finished blocks from the machine to the next stage. It operates with minimal manual intervention, reducing labor needs and preventing block damage. The durable belt and robust frame ensure long-term reliability under heavy loads. An integrated sensor system synchronizes conveyor movement with machine cycle, enabling continuous production.
The raw material hopper of the QT800 is designed for high-efficiency feeding with automatic hydraulic control. It features a large capacity to reduce refill cycles, and a vibration-assisted system to ensure smooth material flow. Its robust structure minimizes clogging and spillage, while the quick-release gate allows for precise material discharge.

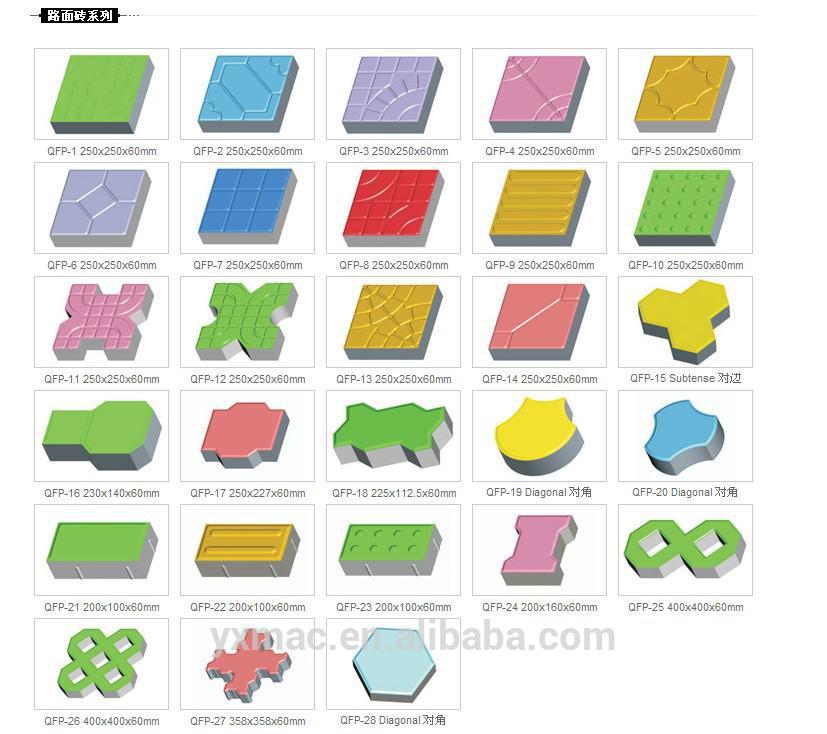

Block Type

The QT800 automatic hydraulic paver block making machine features a high-pressure hydraulic system for dense, high-strength blocks. Its automated PLC control ensures precise vibration and molding cycles, reducing manual intervention. It produces various paver types, hollow blocks, and curbstones with uniform quality. The machine includes a double-layer hydraulic cylinder for easy mold adjustment and fast material changeover.

Customers Access

The QT800 adopts a German-inspired multi-hydraulic drive system, which significantly enhances vibration force. This results in a denser mix during molding. The powerful hydraulics shorten the forming cycle, boosting hourly output. Consequently, each block achieves superior structural strength and uniformity. This advanced system ensures efficient production of high-quality paving blocks, reducing curing time while improving durability for demanding construction applications.

FAQ

1.Is the machine fully automatic? Do we need manual laborers??

Yes, the QT800 is fully automatic with a programmable logic controller. The machine includes automatic pallet feeding, raw material feeding, vibration, compression, and product ejection. You will need 2 to 3 operators for raw material loading, mold change, and quality checking. No manual handling of wet blocks is required.

2.Can we produce colored pavers on this machine? What is the process? ?

Yes, you can. You will need a double-layer feeding system accessory. The process is: first, add the color mix (cement + color pigment) into the face layer hopper, then the base concrete goes into the main hopper. The hydraulic system compresses both layers together. We can provide the color dosing unit as an optional add-on.

3. What is the hydraulic pressure rating and why is it important?

The system operates at 21 MPa (megapascals). This high pressure ensures strong vibration and compression force of up to 150 kN. Higher pressure means better block density, lower cement usage, and bricks that do not crack during curing. The QT800 uses a dual-pump hydraulic system for stable output.

4.What kind of warranty and after-sales support do you provide for a project-based buyer like us??

We offer a standard 12-month warranty on the main structure and hydraulic system, and a 12-month warranty on electrical components and the PLC. More importantly for project timelines, we provide on-site commissioning by our engineers and a 48-hour response guarantee for any critical service requests.

5. How many days to change vibration box oil ,what kind of oil can be used inside??

The hydraulic oil 68 degree can be used, the amount is from bottom 3cm. Strongly suggest 1 month change one time oil
