Aggregate Concrete Batching Machine Plant Model PL 1200
The Yixin Machinery Aggregate Concrete Batching Machine Plant Model PL 1200 is a high-quality and efficient batching plant designed for the production of aggregate concrete. With a compact and user-friendly design, it is capable of accurately measuring and mixing different materials to produce consistent and high-quality concrete.
Modelo :
Yixin Machinery PL 1200Embalagem :
FilmModo de transação :
TT or 100%LCQuantidade mínima de encomenda :
1setCor :
yellow or white and bluePorta de descarga: :
Xiamen portCiência dos Materiais :
Q235 Steel ,handox steelAggregate Concrete Batching Machine Plant Model PL 1200
Reference video of Aggregate Concrete Batching Machine Plant Model PL 1200:
This reference video showcases the PL 1200, a high-capacity aggregate concrete batching plant engineered for accurate weighing and feeding of aggregates and cement. Featuring multiple aggregate bins (2, 3, or 4 bins), a heavy-duty skip hoist, and precision load cells, it achieves ±2% batching accuracy for consistent mix quality. With a 1200-liter batch capacity per cycle, it efficiently supplies material for high-volume block production lines and concrete mixing plants. The PLC automatic control allows easy adjustment of mix proportions and real-time production monitoring. Watch the video to see the PL 1200 deliver reliability, accuracy, and efficiency.
Tech Data
| Type | PL800 | PL1200 | PL1600-3 | PL1600-4 |
| Volume of Weigh Hopper | 2m³*2 | 4m³*3 | 7m³*3 | 7m³*4 |
| Wolume of Unloading Hopper （m³） | 0.8 | 1.2 | 1.6 | 1.6 |
| Productivity（m³） | 48 | 72 | 96 | 96 |
| Maximum Magnitude | 1.5T | 2T | 3T | 4T |
Product Detail
Block Display

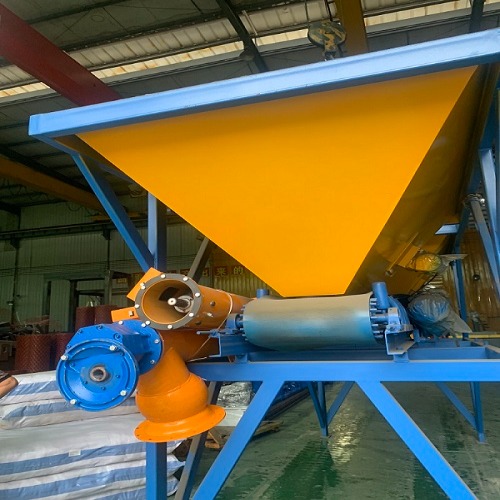

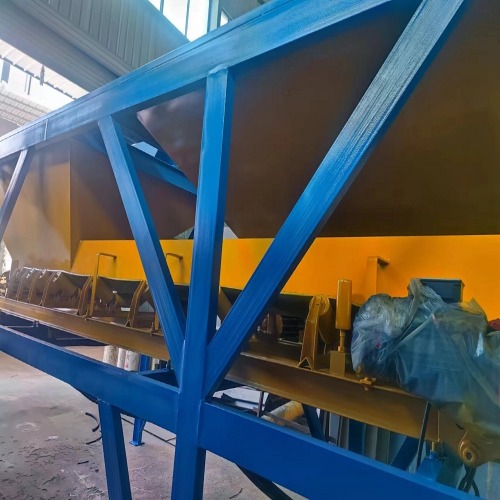

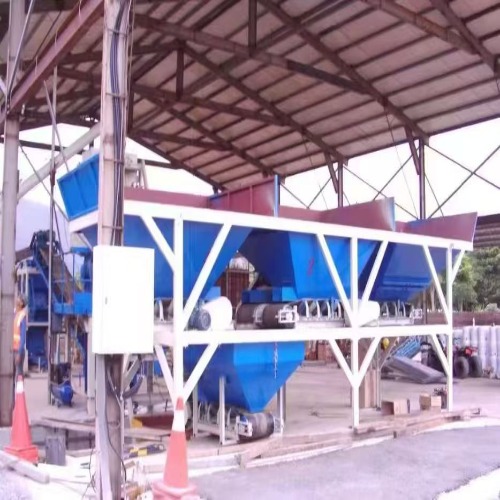

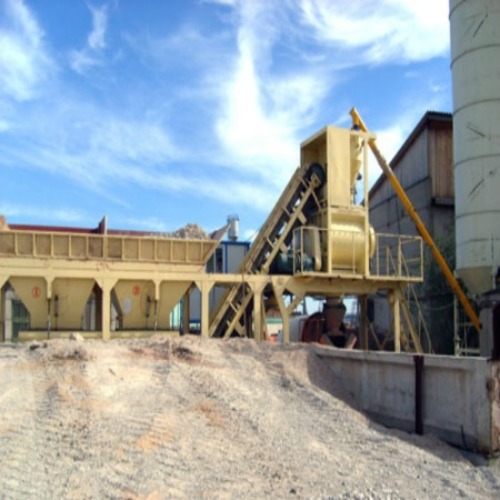

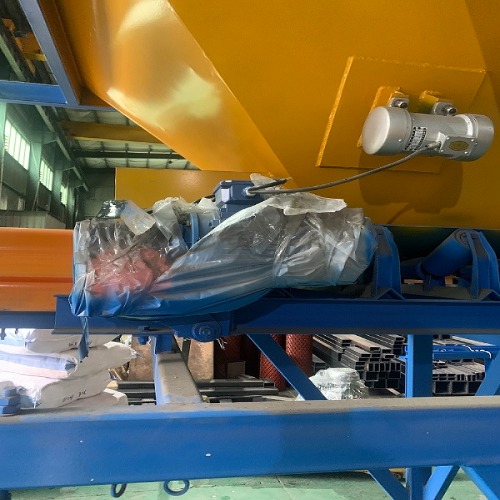

The PL 1200 product display showcases the complete batching plant's components and capabilities. Featured prominently are the aggregate storage bins, precision weighing hopper, skip hoist, cement silo, screw conveyor, conveyor belt, control panel, and discharge system—each exhibiting robust construction and thoughtful engineering. The display highlights the load cells, vibration motors, and PLC automation that ensure accurate batching. Also shown are sample concrete blocks, pavers, and hollow bricks produced using PL 1200-batched materials, demonstrating superior quality and consistency. This comprehensive display illustrates how the PL 1200 integrates seamlessly into concrete production lines, delivering reliability, accuracy, and high efficiency.
Product Display
The PL 1200 product display showcases the complete batching plant's components and capabilities. Featured prominently are the aggregate storage bins, precision weighing hopper, skip hoist, cement silo, screw conveyor, conveyor belt, control panel, and discharge system—each exhibiting robust construction and thoughtful engineering. The display highlights the load cells, vibration motors, and PLC automation that ensure accurate batching. Also shown are sample concrete blocks, pavers, and hollow bricks produced using PL 1200-batched materials, demonstrating superior quality and consistency. This comprehensive display illustrates how the PL 1200 integrates seamlessly into concrete production lines, delivering reliability, accuracy, and high efficiency.
| FAQ |
| 1. What is the PL Series mainly used for?
It is used for automatic batching of sand, stone, and other aggregates in concrete production. It works well with mixers like JS series. |
|
2.Is it easy to operate? Yes, it has a user-friendly control system. Operators can easily set formulas and monitor the process with clear displays. |
|
3.How easy is maintenance? The PL 800 features accessible components, wear-resistant liners, and easy-to-clean hoppers for simple routine maintenance. |
|
4.Does it have a vibration system? Yes. The vibration motor prevents material bridging and ensures smooth flow from bins, especially for moist or fine aggregates. |
|
5.What about power consumption? Efficiency isn’t just about speed for us; it’s also about energy costs per cubic meter.That’s a key metric. The high efficiency here directly reduces energy costs. We use premium-efficiency motors on the mixer and the belts. More importantly, the mixer operates with an optimal filling ratio. Because the mixing cycle is shorter than standard plants, you produce more cubic meters per kilowatt-hour. Customers typically report a 15 to 20 percent reduction in energy consumption per cubic meter compared to their older volumetric or free-fall plants. |
